產品概述
85C17型電表是用途廣泛的直接作用模擬指示電測量儀表、適用于直流電路和交流電路測量：電壓、電流、功率、頻率和功率因數等電量參數。安裝式電表的優點是可以顯示被測量電量的變化趨勢：主要用于工礦企業，冶金，化工、電力、成套設備及各種電控裝置上。造型簡潔明快、美觀大方。產品性能符合GB/T7676-1998國家標準要求。
|
主要功能特點:交流電流表、電壓表、功率表、功率因數表、頻率表。
直流電流表、電壓表。
|
主要技術參數：
|
耐機械力性能
|
能 承受加速度為30米/秒2,及沖擊頻率每分鐘80~120次2小時的運輸顛震
|
|
防外磁場影響
|
在5奧斯特外界磁場作用下，所引起的指示值改變不超過±2.5%
|
|
絕緣強度
|
交流50Hz，2000V，歷時1分鐘
|
|
環境條件
|
溫度:-20~+40℃,相對濕度≤85%
(25℃) 阻尼響應時間≤4秒
|
|
工作位置
|
垂直使用
|
|
|
|
|
|

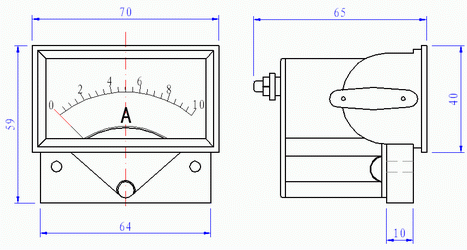

外形和包裝尺寸
|
宇泰電流表 85L17-0.5A 85L17-500MA 85L17-1A 85L17-2A 85L17-3A 85L17-5A 85L17-10A 85L17-15A 85L17-20A 85L17-20/5A 85L17-30A 85L17-30/5A 85L17-50A 85L17-50/5A 85L17-75A 85L17-75/5A 85L17-100A 85L17-100/5A 85L17-150A 85L17-150/5A 85L17-200A 85L17-200/5A 85L17-250A 85L17-250/5A 85L17-300A 85L17-300/5A 85L17-400A 85L1-400/5A 85L17-500A 85L17-500/5A 85L17-600A 85L17-600/5A 85L17-750A 85L17-750/5A 85L17-800A 85L17-1000A 85L17-1500A 85L17-2000A 85L17-3000A 85L17-10V 85L17-20V 85L17-15V 85L17-30V 85L17-50V 85L17-75V 85L17-100V 85L17-150V 85L17-250V 85L17-300V 85L17-450V 85L17-500V 85L17-600V 85L17-HZ 380V 85L17-HZ 220V 85L17-HZ 100V 85C17-1A 85C17-200MA 85C17-300MA 85C17-0.5A 85C17-2A 85C17-3A 85C17-5A 85C17-10A 85C17-15A 85C17-20A 85C17-30A 85C17-50A 85C17-75A 85C17-100A 85C17-150A 85C17-200A 85C17-300A 85C17-400A 85C17-500A 85C17-600A 85C17-750A 85C17-1000A 85C17-1500A 85C17-2000A 85C17-3000A 85C17-10V 85C17-20V 85C17-15V 85C17-30V 85C17-50V 85C17-75V 85C17-100V 85C17-150V 85C17-250V 85C17-300V 85C17-450V 85C17-500V宇泰電流表 85L17-0.5A 85L17-500MA 85L17-1A 85L17-2A 85L17-3A 85L17-5A 85L17-10A 85L17-15A 85L17-20A 85L17-20/5A 85L17-30A 85L17-30/5A 85L17-50A 85L17-50/5A 85L17-75A 85L17-75/5A 85L17-100A 85L17-100/5A 85L17-150A 85L17-150/5A 85L17-200A 85L17-200/5A 85L17-250A 85L17-250/5A 85L17-300A 85L17-300/5A 85L17-400A 85L1-400/5A 85L17-500A 85L17-500/5A 85L17-600A 85L17-600/5A 85L17-750A 85L17-750/5A 85L17-800A 85L17-1000A 85L17-1500A 85L17-2000A 85L17-3000A 85L17-10V 85L17-20V 85L17-15V 85L17-30V 85L17-50V 85L17-75V 85L17-100V 85L17-150V 85L17-250V 85L17-300V 85L17-450V 85L17-500V 85L17-600V 85L17-HZ 380V 85L17-HZ 220V 85L17-HZ 100V 85C17-1A 85C17-200MA 85C17-300MA 85C17-0.5A 85C17-2A 85C17-3A 85C17-5A 85C17-10A 85C17-15A 85C17-20A 85C17-30A 85C17-50A 85C17-75A 85C17-100A 85C17-150A 85C17-200A 85C17-300A 85C17-400A 85C17-500A 85C17-600A 85C17-750A 85C17-1000A 85C17-1500A 85C17-2000A 85C17-3000A 85C17-10V 85C17-20V 85C17-15V 85C17-30V 85C17-50V 85C17-75V 85C17-100V 85C17-150V 85C17-250V 85C17-300V 85C17-450V 85C17-500V宇泰電流表 85L17-0.5A 85L17-500MA 85L17-1A 85L17-2A 85L17-3A 85L17-5A 85L17-10A 85L17-15A 85L17-20A 85L17-20/5A 85L17-30A 85L17-30/5A 85L17-50A 85L17-50/5A 85L17-75A 85L17-75/5A 85L17-100A 85L17-100/5A 85L17-150A 85L17-150/5A 85L17-200A 85L17-200/5A 85L17-250A 85L17-250/5A 85L17-300A 85L17-300/5A 85L17-400A 85L1-400/5A 85L17-500A 85L17-500/5A 85L17-600A 85L17-600/5A 85L17-750A 85L17-750/5A 85L17-800A 85L17-1000A 85L17-1500A 85L17-2000A 85L17-3000A 85L17-10V 85L17-20V 85L17-15V 85L17-30V 85L17-50V 85L17-75V 85L17-100V 85L17-150V 85L17-250V 85L17-300V 85L17-450V 85L17-500V 85L17-600V 85L17-HZ 380V 85L17-HZ 220V 85L17-HZ 100V 85C17-1A 85C17-200MA 85C17-300MA 85C17-0.5A 85C17-2A 85C17-3A 85C17-5A 85C17-10A 85C17-15A 85C17-20A 85C17-30A 85C17-50A 85C17-75A 85C17-100A 85C17-150A 85C17-200A 85C17-300A 85C17-400A 85C17-500A 85C17-600A 85C17-750A 85C17-1000A 85C17-1500A 85C17-2000A 85C17-3000A 85C17-10V 85C17-20V 85C17-15V 85C17-30V 85C17-50V 85C17-75V 85C17-100V 85C17-150V 85C17-250V 85C17-300V 85C17-450V 85C17-500V宇泰電流表 85L17-0.5A 85L17-500MA 85L17-1A 85L17-2A 85L17-3A 85L17-5A 85L17-10A 85L17-15A 85L17-20A 85L17-20/5A 85L17-30A 85L17-30/5A 85L17-50A 85L17-50/5A 85L17-75A 85L17-75/5A 85L17-100A 85L17-100/5A 85L17-150A 85L17-150/5A 85L17-200A 85L17-200/5A 85L17-250A 85L17-250/5A 85L17-300A 85L17-300/5A 85L17-400A 85L1-400/5A 85L17-500A 85L17-500/5A 85L17-600A 85L17-600/5A 85L17-750A 85L17-750/5A 85L17-800A 85L17-1000A 85L17-1500A 85L17-2000A 85L17-3000A 85L17-10V 85L17-20V 85L17-15V 85L17-30V 85L17-50V 85L17-75V 85L17-100V 85L17-150V 85L17-250V 85L17-300V 85L17-450V 85L17-500V 85L17-600V 85L17-HZ 380V 85L17-HZ 220V 85L17-HZ 100V 85C17-1A 85C17-200MA 85C17-300MA 85C17-0.5A 85C17-2A 85C17-3A 85C17-5A 85C17-10A 85C17-15A 85C17-20A 85C17-30A 85C17-50A 85C17-75A 85C17-100A 85C17-150A 85C17-200A 85C17-300A 85C17-400A 85C17-500A 85C17-600A 85C17-750A 85C17-1000A 85C17-1500A 85C17-2000A 85C17-3000A 85C17-10V 85C17-20V 85C17-15V 85C17-30V 85C17-50V 85C17-75V 85C17-100V 85C17-150V 85C17-250V 85C17-300V 85C17-450V 85C17-500V宇泰電流表 85L17-0.5A 85L17-500MA 85L17-1A 85L17-2A 85L17-3A 85L17-5A 85L17-10A 85L17-15A 85L17-20A 85L17-20/5A 85L17-30A 85L17-30/5A 85L17-50A 85L17-50/5A 85L17-75A 85L17-75/5A 85L17-100A 85L17-100/5A 85L17-150A 85L17-150/5A 85L17-200A 85L17-200/5A 85L17-250A 85L17-250/5A 85L17-300A 85L17-300/5A 85L17-400A 85L1-400/5A 85L17-500A 85L17-500/5A 85L17-600A 85L17-600/5A 85L17-750A 85L17-750/5A 85L17-800A 85L17-1000A 85L17-1500A 85L17-2000A 85L17-3000A 85L17-10V 85L17-20V 85L17-15V 85L17-30V 85L17-50V 85L17-75V 85L17-100V 85L17-150V 85L17-250V 85L17-300V 85L17-450V 85L17-500V 85L17-600V 85L17-HZ 380V 85L17-HZ 220V 85L17-HZ 100V 85C17-1A 85C17-200MA 85C17-300MA 85C17-0.5A 85C17-2A 85C17-3A 85C17-5A 85C17-10A 85C17-15A 85C17-20A 85C17-30A 85C17-50A 85C17-75A 85C17-100A 85C17-150A 85C17-200A 85C17-300A 85C17-400A 85C17-500A 85C17-600A 85C17-750A 85C17-1000A 85C17-1500A 85C17-2000A 85C17-3000A 85C17-10V 85C17-20V 85C17-15V 85C17-30V 85C17-50V 85C17-75V 85C17-100V 85C17-150V 85C17-250V 85C17-300V 85C17-450V 85C17-500V
|
如果您覺得“電流表85L17-3A 0. 1A 2A 10A 1 20A -3A 0. 1A 2A 10A”描述資料不夠齊全，請聯系我們獲取詳細資料。(聯系時請告訴我從給覽網看到的，我們將給您最大優惠！)
